Category 125cc – DIPLOMA A1

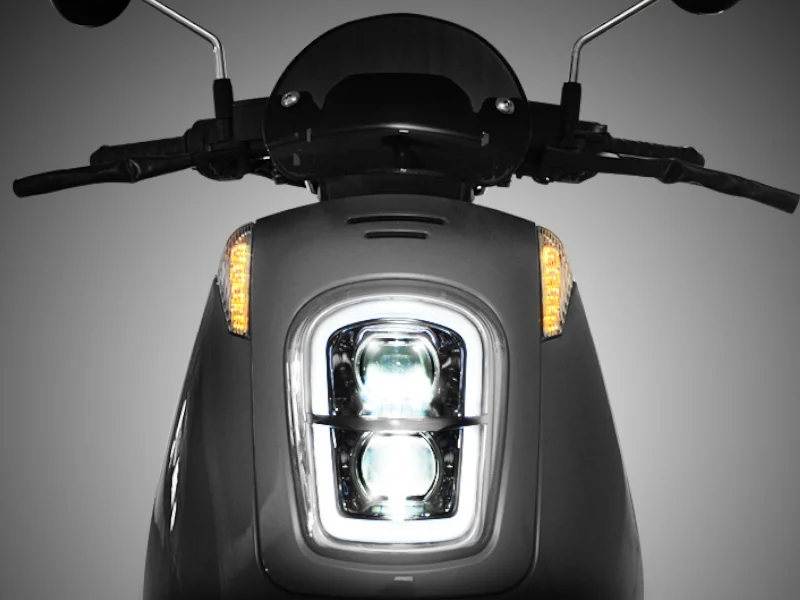

• LED Projector vertical headlights and perimeter LED DRL lights

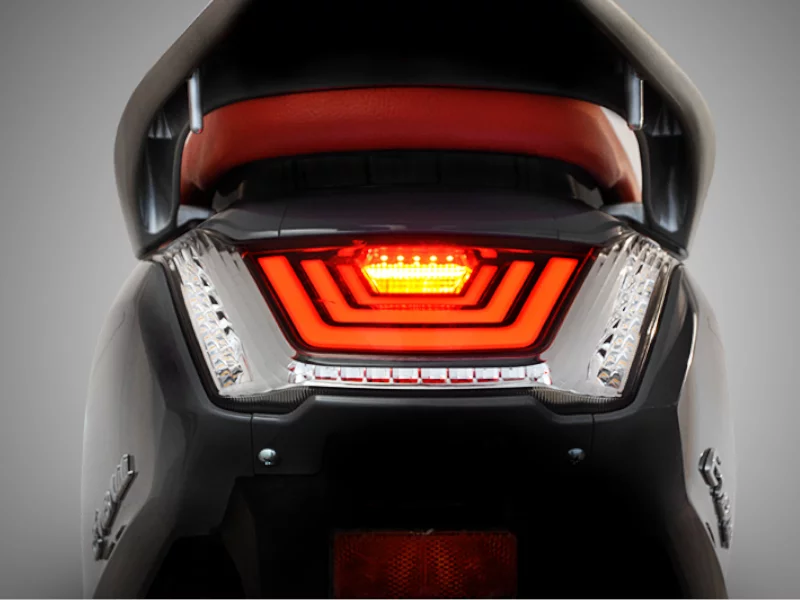

• Unique design LED rear light and LED flash

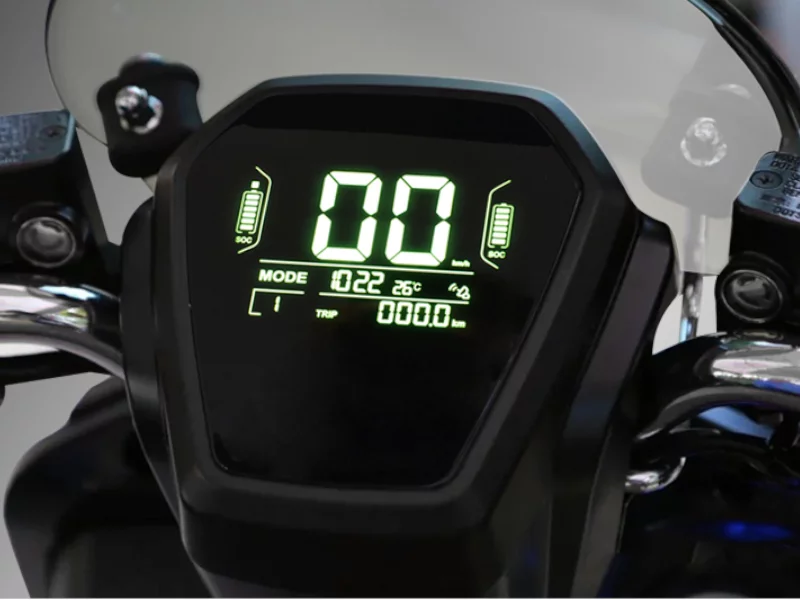

• Color Versatile LCD Instrument Panel / Speedometer Dual battery level indicator Partial / Total Kilometer Indication of selected operating mode Watch Ambient temperature display
• keyless control system and alarm / The control of the main switch does not require the use of a key. The alarm system is switched on and off by the remote control.
• High practicality / The E-Viball offers two storage compartments inside the apron, one open and one closed with a USB charging port. At the same time there is a hand luggage hook and a large flat floor that increases functionality.
• High performance / The engine is located low in the center for optimal weight distribution, with a maximum instantaneous power of 3.2KW transmitted to the rear wheel with a CONTINENTAL toothed belt.

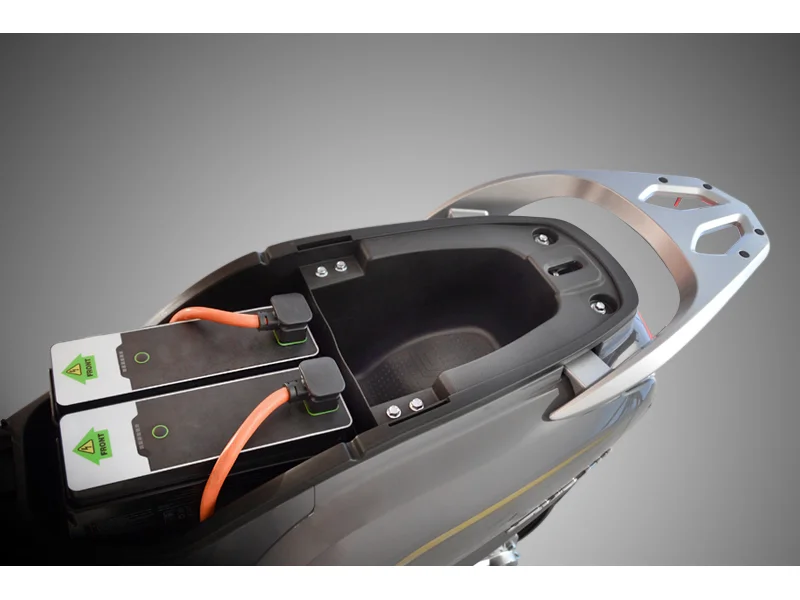

• Detachable Lithium Batteries / Two 61.2 Volt batteries at 28.6Ah weighing 12 kg each. The smart arrangement of the batteries leaves enough storage space under the saddle. The e-Viball charger will fully charge one battery in just 4 hours.
• Large front and rear disc brakes with a diameter of 220mm and 200mm respectively, with two-piston calipers and CBS braking system.
• Aluminum scissors and double shock absorbers adjustable for preload

Features that make it stand out

• Full Led Lighting
• Keyless Boot System
• Cruise control system

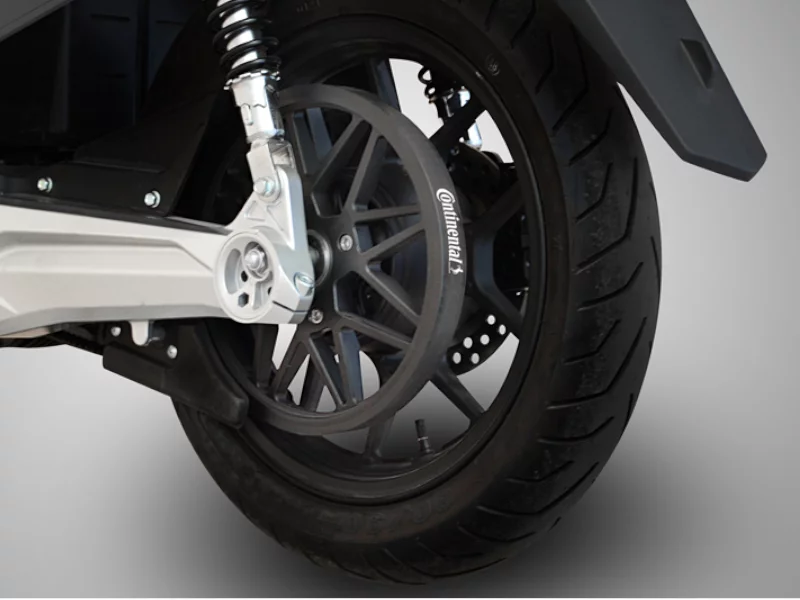

• Final transmission with CONTINENTAL toothed belt
• Fully Digital Dial
• Vehicle Parking Detection
• Alarm system. It is activated by vibrations and by violating the main switch.
• Wheels 14 ″
• Aluminum scissors

Mobile Application

The e-Viball 125 management application offers the user the ability to connect with the following functions:

• Remote battery status check
• Travel history (average speed, distance, travel time)
• Finding a vehicle
• Vehicle diagnostic test
• Personalization (alarm tones, color counter, power recovery level adjustment)
• Electronic fence, where a notification is received on the mobile phone when the vehicle enters or leaves a specific geographical limit set by the user.
• Ability to upgrade vehicle software (Battery management software, electronic controller, engine)
• Vehicle fleet management

Unique high energy efficiency engine
+ Energy recovery system

The engine of the e-Viball 125 is located in the center of the chassis for excellent weight distribution, with a clear advantage over models where the engine is mounted parallel or inside the wheel.

• It has better weight distribution
• There is no strain on the motor from road irregularities
• Less power is required at start-up, resulting in less battery damage over time. The battery life of the e-Viball 125 exceeds 1,000 full charge cycles

Performance & Economy
The electric motor delivers:

• 3200W maximum instantaneous power
• 44 Nm maximum torque on the wheel
• 75 km / h maximum speed
• 23% ability to climb from 0 km / h with full load

Detachable lithium batteries
The e-Viball 125 is equipped with 61.2 Volt batteries at 28.6Ah and weigh 12 kg each. The smart arrangement of the batteries leaves enough storage space under the saddle. The e-Viball charger will fully charge one battery in just 4 hours. Lack of power in the area where you park is not an issue, as the batteries are removable for charging, where this is easy.

Security

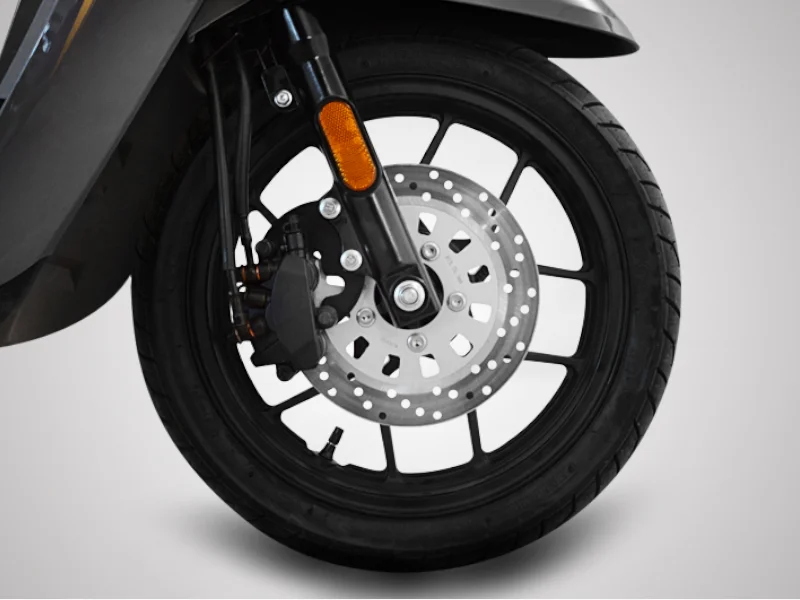

The e-Viball provides high levels of safety when braking, with large front and rear disc brakes with a diameter of 220mm and 200mm respectively, with two-piston calipers and a CBS braking system.

The suspensions consist of a telescopic fork with a travel of 90mm and a diameter of 31mm and a rear double travel of 71mm adjustable in terms of preload.

Dimensions – Masses
Length – Width – Height 1841 Mm * 684 Mm * 1133 Mm
Wheel Wheel 1260 Mm
Vehicle Weight (Without Battery) 96 Kg
Number Of Seats 2

Electric Motor / Performance
Instant Maximum Power 3200w
Continuous Power 3000w
Maximum Torque 44 Nm (On The Wheel)
Maximum Speed 75 Km / H
Autonomy (According To Driving Conditions) 108 Km (Based On Type Approval)
Power Consumption 4.1 Kwh / 100km
Climbing Capacity (Fully Loaded | From 0 Km / Hr) 23%

Transmission
Move Back
Automatic Type
Final Transmission Of Continental Teeth Belt
Removable Battery Yes

Battery
Lithium Type
Voltage 61.2 V
Capacity 57.2 Ah (28.6 Ah X 2)
Battery Weight 12 Kg / Battery
Fully Charging Cycles 1,000+
Charging Time 4 H / Battery

Wheels / Wheels / Suspensions
Front Wheel 80 / 90-14
Rear Wheel 90 / 90-14
Front Brake Disc 220mm
Rear Brake Disc 200 With Cbs
Front Suspension – Track – Diameter Telescopic Fork – 90mm – 31mm
Rear Suspension – Track Double Shock Absorber – 71mm
